登录流程

流程概述

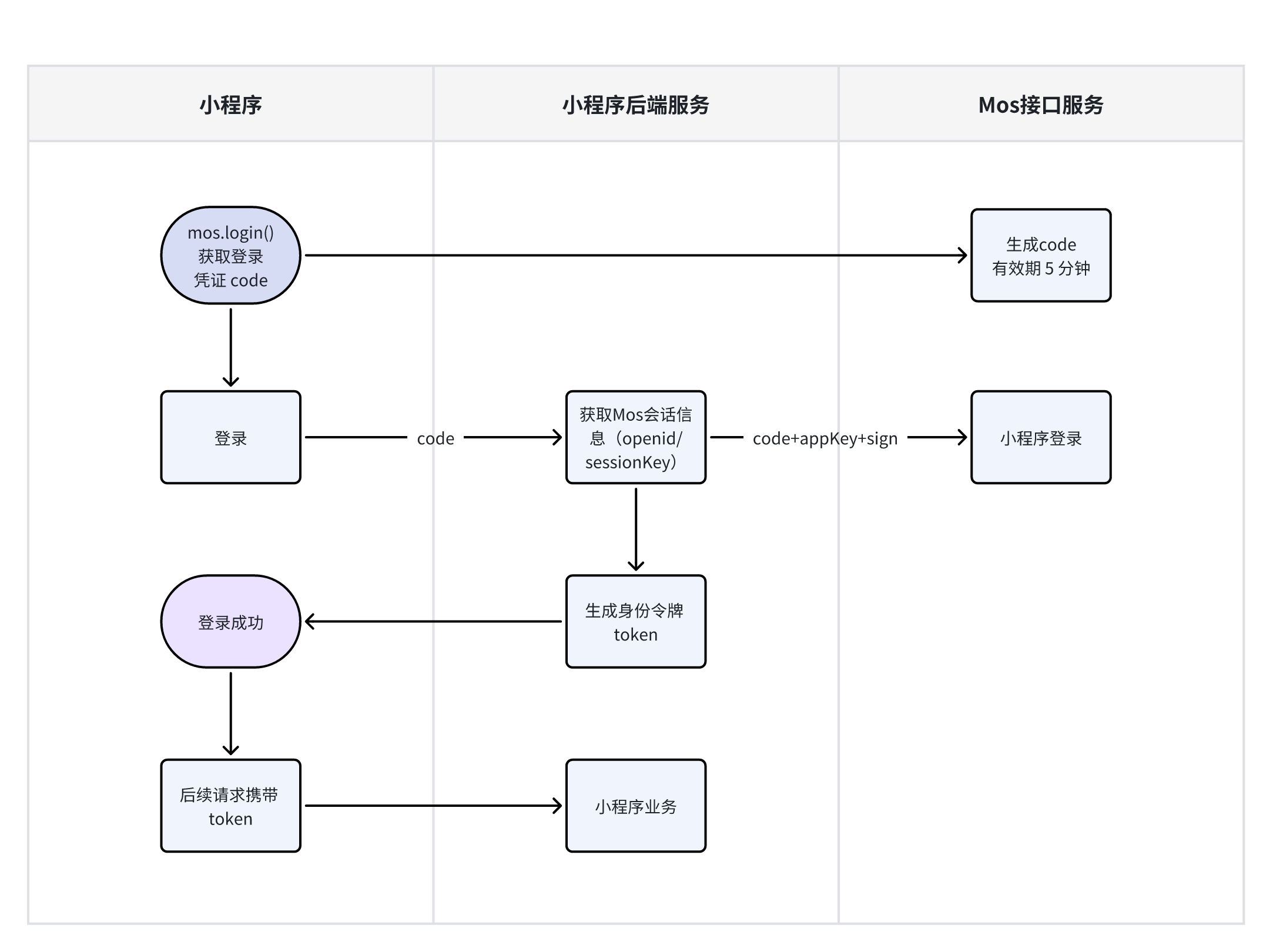

登录流程图

微应用通过 mos.login() 获取登录凭证 code
- code 每次调用均不同
- 有效时间为 5 分钟
- code 被 Mos 接口服务验证一次就会失效
微应用获取到 code 后，将 code 发送到微应用后端服务
微应用后端服务将 code、appKey 和 sign(签名) 发送给 Mos 接口服务验证
- 验证成功返回当前登录用户的 session_key (会话信息) 和 openid (用户唯一标识)
用户登录成功后：
- 微应用后端服务可以将 openid 和 session_key 保存
- 生成自定义登录态的 token 返回给微应用
- 通过 token 可以查询 openid 和 session_key
- 微应用下次请求携带 token 即可证明已登录

提示

微应用后端服务可以在获取到 openid 后与绑定到微应用的用户体系，完成微应用用户和 Mos 用户体系的关联。

前端实现

登录示例代码

javascript

// 调用 mos.login 获取登录凭证 code
mos.login("your_app_key").then((res) => {
  // 微应用后端服务登录
  axios.post("https://demo-test.miniapp.xxx/api/login/miniAppLogin", {
    code: res.data.code,
  }).then((res1) => {
    // Token保存到缓存，后续请求带上
    localStorage.setItem("token", res1.data);
  });
});

后端实现

java

package testproject.service.impl;

import cn.hutool.crypto.digest.MD5;
import com.alibaba.fastjson2.JSON;
import com.alibaba.fastjson2.JSONObject;
import com.alibaba.fastjson2.TypeReference;
import com.baomidou.mybatisplus.annotation.EnumValue;
import com.fasterxml.jackson.annotation.JsonValue;
import testproject.domain.vo.TokenVo;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;
import lombok.*;
import lombok.experimental.Accessors;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.core.env.Environment;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.http.client.SimpleClientHttpRequestFactory;
import org.springframework.stereotype.Component;
import org.springframework.web.client.RestTemplate;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;

import javax.servlet.http.HttpServletRequest;
import javax.validation.constraints.NotNull;
import java.util.Date;
import java.util.Map;
import java.util.TreeMap;

/**
 * 微应用用户公共服务
 *
 * @author tom
 */
@Slf4j
@Component
public class MiniAppCommonService {

    // 登录签名密钥
    public static final String LOGIN_SIGNING_KEY = "your_complex_key_it_can_be_random";

    /**
     * Mos微应用的调用地址
     */
    @Value("${mos.mini-app.base-url}")
    private String baseUrl;
    /**
     * Mos微应用的appKey
     */
    @Value("${mos.mini-app.app-key}")
    private String appKey;
    /**
     * Mos微应用的appSecret
     */
    @Value("${mos.mini-app.app-secret}")
    private String appSecret;

    @Autowired
    private Environment env;

    private final RestTemplate restTemplate;

    public MiniAppCommonService() {
        SimpleClientHttpRequestFactory httpRequestFactory = new SimpleClientHttpRequestFactory();
        httpRequestFactory.setConnectTimeout(30000);
        httpRequestFactory.setReadTimeout(60000);
        this.restTemplate = new RestTemplate(httpRequestFactory);
    }

    /**
     * 请求Mos服务端微应用开放接口
     *
     * @param uri          接口URI
     * @param ao           请求参数
     * @param clazz 响应类型
     * @return 响应对象
     */
    private <T> T call(String uri, BaseSignedAo ao, Class<T> clazz) {
        // 签名
        ao.setAppKey(this.appKey);

        Map<String, String> data = JSON.parseObject(JSON.toJSONString(ao), new TypeReference<Map<String, String>>() {
        });
        String sign = MiniAppUtil.generateSignature(data, this.appSecret);
        ao.setSign(sign);

        // 发起请求
        String url = this.baseUrl + uri;
        ResponseEntity<String> responseEntity = restTemplate.postForEntity(url, ao, String.class);
        if (responseEntity.getStatusCode() != HttpStatus.OK || responseEntity.getBody() == null) {
            log.error("微应用请求异常 uri={} ao={}", uri, JSON.toJSONString(ao));
            return null;
        }

        // 解析响应 code(int) message(String) data(T)
        JSONObject result = JSON.parseObject(responseEntity.getBody());
        if ((int)result.get("code") != 200) {
            log.error("微应用请求异常 uri={} ao={} result={}", uri, JSON.toJSONString(ao), JSON.toJSONString(result));
            return null;
        }
        return JSON.to(clazz, result.get("data"));
    }

    public MiniAppUserBo getMiniAppUser() {
        HttpServletRequest request = ((ServletRequestAttributes)RequestContextHolder.getRequestAttributes()).getRequest();
        String appKey = (String) request.getAttribute("appKey");
        String openid = (String) request.getAttribute("openid");
        String language = request.getHeader("Lang");

        LanguageEnum languageType;
        if (StringUtils.isBlank(language)) {
            languageType = LanguageEnum.EN_US;
        } else {
            languageType = LanguageEnum.getByCode(language);
        }
        return new MiniAppUserBo(appKey, openid, languageType);
    }

    public TokenVo miniAppLogin(String code) {
        MosSessionVo mosSessionVo = this.code2session(code);
        if (mosSessionVo == null) {
            return null;
        }
        String token = Jwts.builder()
                .setSubject(this.appKey + "-" + mosSessionVo.getOpenid())
                .setIssuedAt(new Date())
                // 有效期改为360天
                .setExpiration(new Date(System.currentTimeMillis() + 1000L * 60 * 60 * 24 * 360))
                .signWith(SignatureAlgorithm.HS256, LOGIN_SIGNING_KEY).compact();
        return new TokenVo().setToken(token);
    }

    public MosSessionVo code2session(String code) {
        Code2SessionAo ao = new Code2SessionAo().setCode(code);
        return this.call("/open-apis/mp/v1/auth/code2session", ao, MosSessionVo.class);
    }

    @Data
    @AllArgsConstructor
    @NoArgsConstructor
    public static class MosSessionVo {

        /**
         * openid
         */
        private String openid;

        /**
         * session key
         */
        private String sessionKey;

    }

    @Data
    public static class BaseSignedAo {

        /**
         * 微应用 appKey
         */
        @NotNull
        private String appKey;

        /**
         * 签名
         */
        @NotNull
        private String sign;

    }

    @Data
    @Accessors(chain = true)
    @EqualsAndHashCode(callSuper = true)
    public static class Code2SessionAo extends BaseSignedAo {

        /**
         * 通过 mos.login 获取的 code
         */
        @NotNull
        private String code;

    }

    @Getter
    @AllArgsConstructor
    public static enum LanguageEnum {

        ZH_CN("zh-CN", "zh-CN"),
        ZH_HK("zh-HK", "zh-HK"),
        ZH_TW("zh-TW", "zh-TW"),
        EN_US("en-US", "en-US"),
        KM_KH("km-KH", "km-KH"),
        VI_VN("vi-VN", "vi-VN"),
        TH_TH("th-TH", "th-TH"),
        MS_MY("ms-MY", "ms-MY"),
        JA_JP("ja-JP", "ja-JP"),
        KO_KR("ko-KR", "ko-KR"),
        ID_ID("id-ID", "id-ID"),
        LO_LA("lo-LA", "lo-LA"),
        HI_IN("hi-IN", "hi-IN"),
        ;

        @EnumValue
        @JsonValue
        private final String code;
        private final String desc;

        public static LanguageEnum getByCode(String code) {
            if (code == null || code.isEmpty()) {
                return null;
            }

            String[] paramSplits = code.split("-");
            if (paramSplits.length > 1) {
                for (LanguageEnum languageEnum : LanguageEnum.values()) {
                    if (languageEnum.getCode().equals(code)) {
                        return languageEnum;
                    }
                }
            }
            // 兼容数据 之前传的是zh和en
            else {
                for (LanguageEnum languageEnum : LanguageEnum.values()) {
                    String[] enumSplits = languageEnum.getCode().split("-");
                    if (enumSplits[0].equalsIgnoreCase(code)) {
                        return languageEnum;
                    }
                }
            }
            return null;
        }

    }

    @Data
    @AllArgsConstructor
    @NoArgsConstructor
    public static class MiniAppUserBo {

        /**
         * appKey
         */
        private String appKey;

        /**
         * openid
         */
        private String openid;

        /**
         * 语言类型 zh-CN中文 en-US英文
         */
        private LanguageEnum languageType;
    }

    public static class MiniAppUtil {

        /**
         * 生成签名
         */
        public static String generateSignature(Map<String, String> data, String appSecret) {
            // 1. Sort the parameters alphabetically
            Map<String, String> sortedData = new TreeMap<>(data);

            // 2. Concatenate the parameters in the format key1=value1&key2=value2...
            StringBuilder sb = new StringBuilder();
            for (Map.Entry<String, String> entry : sortedData.entrySet()) {
                if ("sign".equals(entry.getKey()) || entry.getValue() == null || entry.getValue().isEmpty()) {
                    // sign 不参与签名 && 空值不参与签名
                    continue;
                }
                sb.append(entry.getKey()).append("=").append(entry.getValue().trim()).append("&");
            }
            sb.append("secret=").append(appSecret);

            // 3. Hash the concatenated string using MD5
            return new MD5().digestHex(sb.toString());
        }

    }

}

java

import testproject.domain.vo.LoginAo;
import testproject.domain.vo.TokenVo;
import testproject.service.impl.MiniAppCommonService;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

/**
 * The type Project member controller.
 */
@RestController
@RequestMapping("/mp/")
public class MiniAppController {

    /**
     * The Project member service.
     */
    @Resource
    private MiniAppCommonService miniAppCommonService;

    /**
     * 查询项目成员列表
     *
     * @param param the query str
     * @return the table data info
     */
    @PostMapping("/login/miniAppLogin")
    public TokenVo miniAppLogin(@RequestBody @Validated LoginAo param) {
        // 直接调用公共模块提到的通用登录方法获取 Token
        TokenVo tokenVo = miniAppCommonService.miniAppLogin(param.getCode());
        if(tokenVo == null) {
            throw new RuntimeException("login failed, checking the parameter of code");
        }
        // check is the openid new in your db
        // ... do it use tokenVo.getOpenId
        return tokenVo.getToken();
    }

}

java

package testproject.domain.vo;

import lombok.Data;
import lombok.experimental.Accessors;

/**
 * @author tom
 */
@Data
@Accessors(chain = true)
public class TokenVo {

    /**
     * token
     */
    private String token;

    /** the mosapp user relative id, don't share to frontend **/
    private String openId;

}

java

package testproject.domain.vo;

import lombok.Data;
import javax.validation.constraints.NotNull;

/**
 * 通过code换取登录token
 *
 * @author zhi
 * @since 2024/7/16
 */
// 通过code换取mos用户信息入参
@Data
public class LoginAo {

    @NotNull
    // 通过mos.login获取的code
    private String code;

}

java

// 最后，需要添加过滤器
package testproject.interceptor;

import testproject.service.impl.MiniAppCommonService;
import io.jsonwebtoken.Claims;
import io.jsonwebtoken.Jwts;
import lombok.Getter;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.HandlerInterceptor;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.util.Date;

/**
 * @author 登录鉴权拦截器
 */
@Getter
@Configuration
public class LoginInterceptor implements HandlerInterceptor {

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        if (request.getMethod().equalsIgnoreCase("OPTIONS")) {
            return true;
        }

        String authHeader = request.getHeader("Authorization");
        if (authHeader != null && authHeader.startsWith("Bearer ")) {
            String token = authHeader.substring(7);
            try {
                Claims claims = Jwts.parser()
                        .setSigningKey(MiniAppCommonService.LOGIN_SIGNING_KEY)
                        .parseClaimsJws(token)
                        .getBody();
                String[] subjects = claims.getSubject().split("-");
                if (subjects.length == 2 && subjects[0] != null && subjects[1] != null && !this.isTokenExpired(token)) {
                    request.setAttribute("appKey", subjects[0]);
                    request.setAttribute("openid", subjects[1]);
                    return true;
                } else {
                    response.sendError(HttpServletResponse.SC_UNAUTHORIZED, "Invalid or expired token");
                    return false;
                }
            } catch (Exception e) {
                response.sendError(HttpServletResponse.SC_UNAUTHORIZED, "Invalid or expired token");
                return false;
            }
        } else {
            response.sendError(HttpServletResponse.SC_UNAUTHORIZED, "Missing or invalid Authorization header");
            return false;
        }
    }

    private boolean isTokenExpired(String token) {
        Claims claims = Jwts.parser()
                .setSigningKey(MiniAppCommonService.LOGIN_SIGNING_KEY)
                .parseClaimsJws(token)
                .getBody();
        return claims.getExpiration().before(new Date());
    }

}

java

package testproject.interceptor;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

@Configuration
public class WebConfigure implements WebMvcConfigurer {

    private static final String[] EXCLUDE_PATH_PATTERNS_FOR_SWAGGER = {"/doc.html", "/v2/api-docs", "/swagger-resources/**", "/webjars/**"};

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        // 注册自定义拦截器
        registry.addInterceptor(new LoginInterceptor())
                // 拦截所有mp微应用的请求
                .addPathPatterns("/mp/**")
                // 排除swagger接口说明文档
                .excludePathPatterns(EXCLUDE_PATH_PATTERNS_FOR_SWAGGER)
                // 排除微应用登录路径
                .excludePathPatterns("/mp/login/miniAppLogin");
    }

}

Spring Security 配置

如果使用 Spring Security 进行安全认证，需要在配置中添加相应的权限：

Spring Security 配置示例

登录流程 ​

流程概述 ​

前端实现 ​

登录示例代码 ​

后端实现 ​

登录流程

流程概述

前端实现

登录示例代码

后端实现
